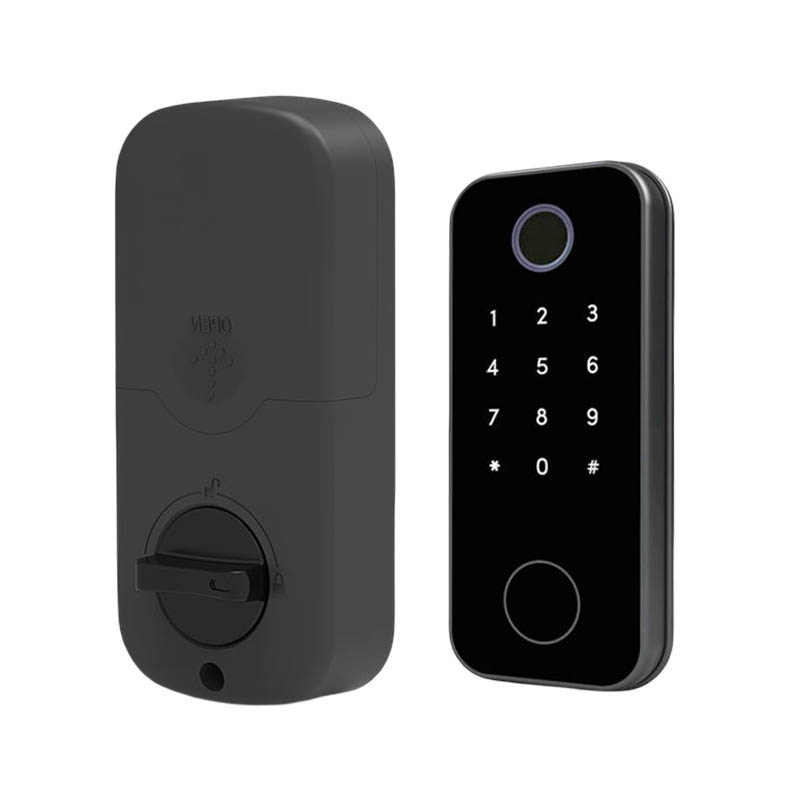

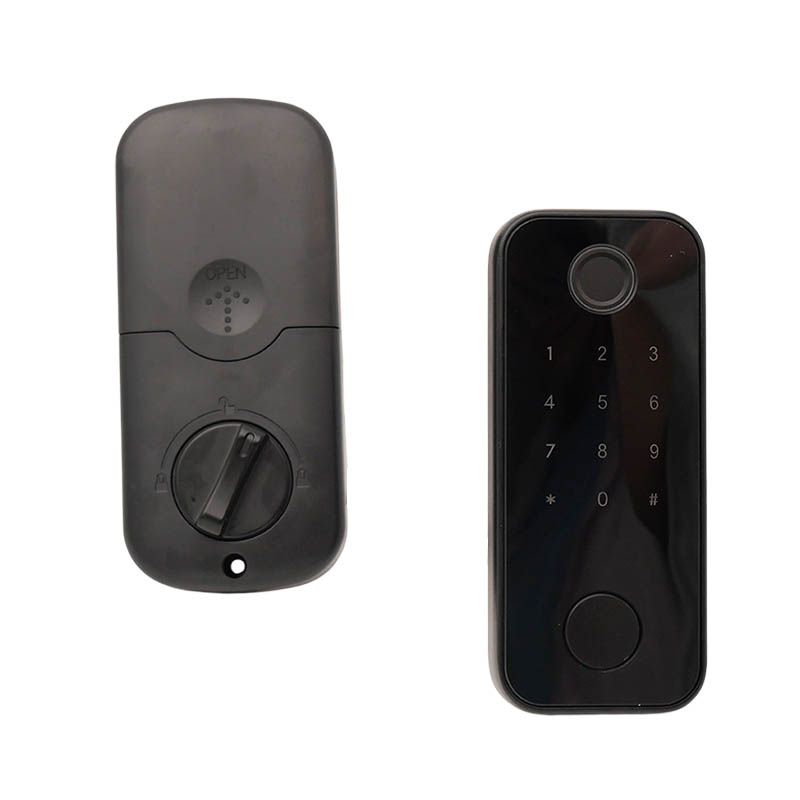

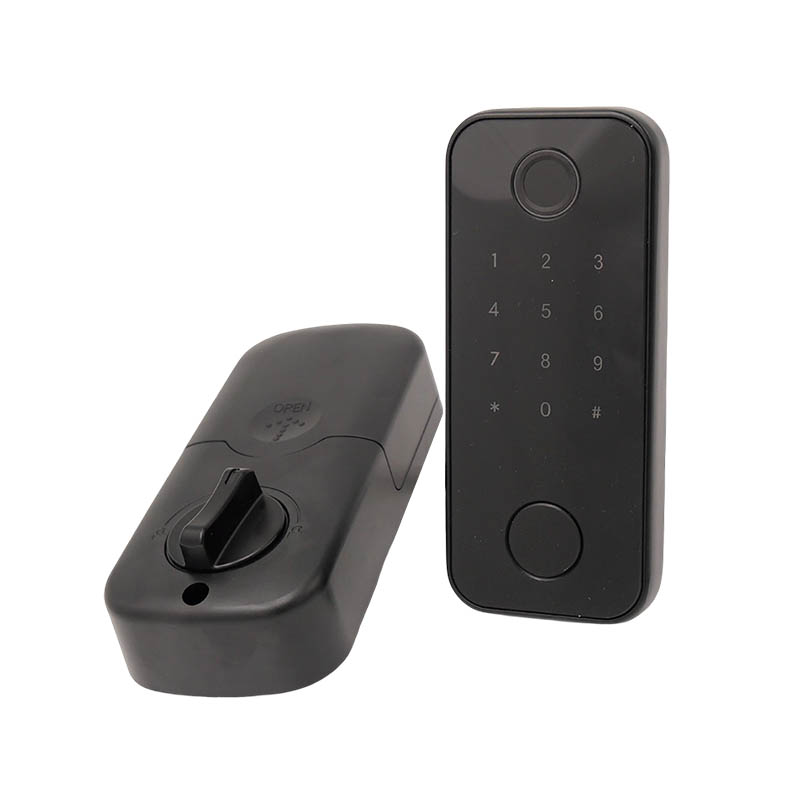

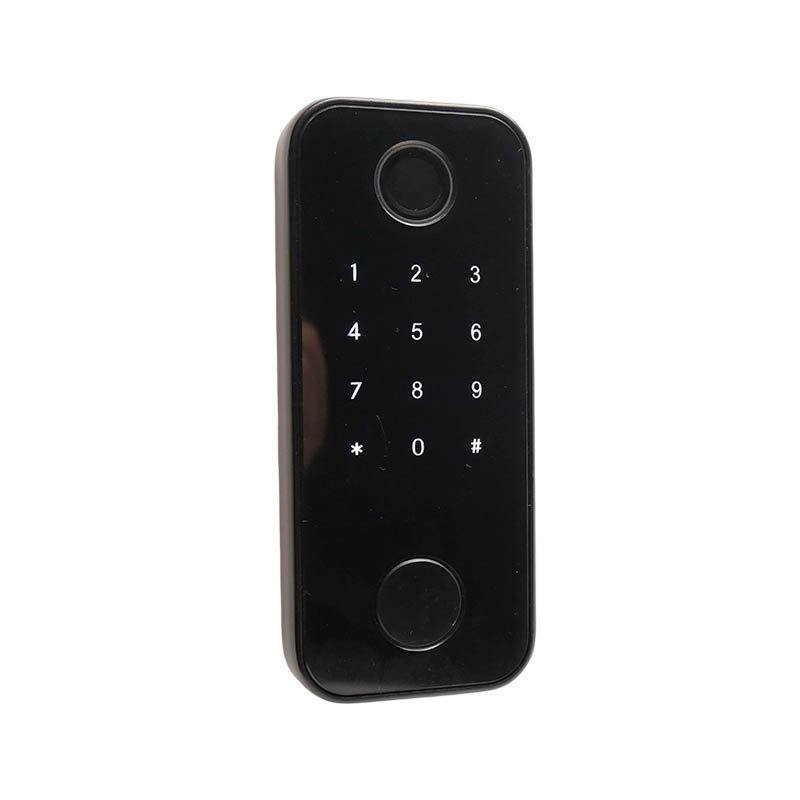

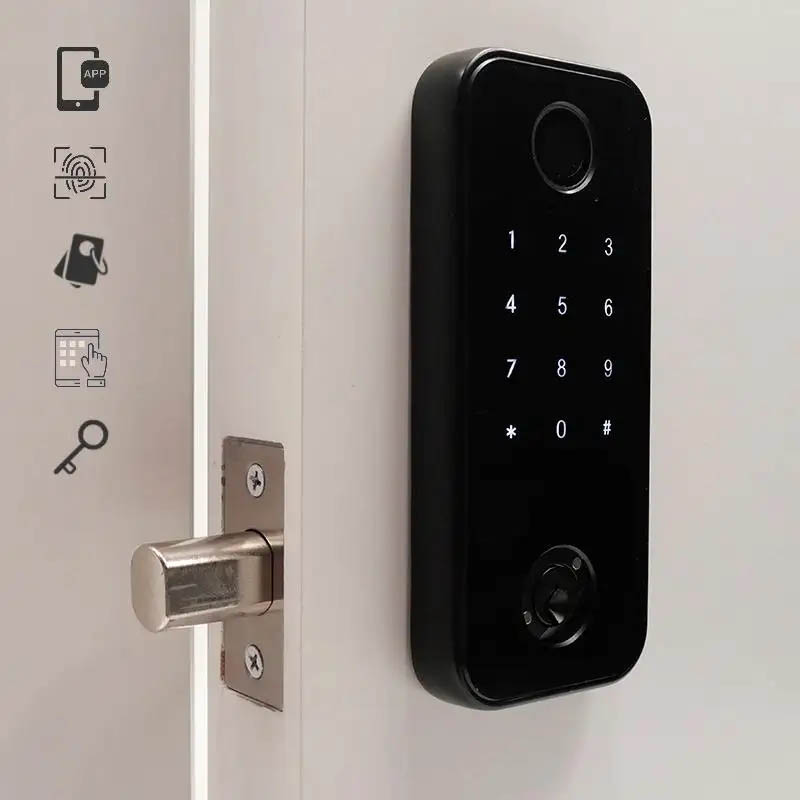

Smart Deadbolt Lock

8705
User Manual
Product color: Spray paint sub-black/Pearl nickel
Product material: Front panel aluminum alloy, rear panel ABS plastic

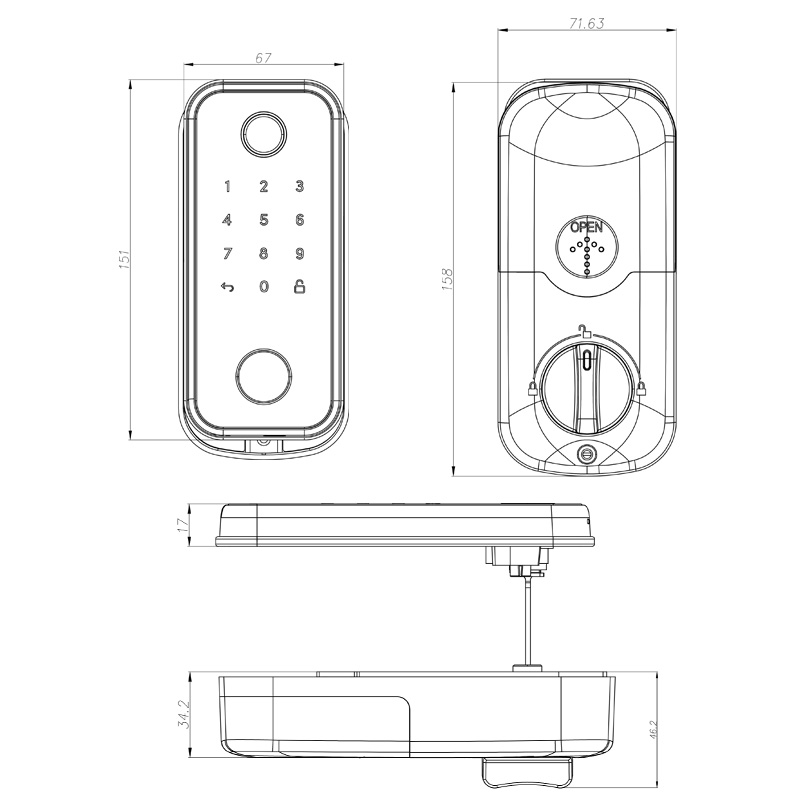

Product size:
Front panel 148*64*28.5mm,
Rear panel 158*71.5*47.5mm
Fingerprint capacity: 100 pieces
Password storage capacity: 50 groups
Password length: 6 digits
Opening method: Bluetooth/touch password/
Fingerprint/mechanical key
Power type: 4 No. 5 batteries
Emergency power supply: USB charging

Consult

Features Technical Indicators Overall Dimension

Reference images	Product Name	Factory Part Number/Model	How to open	Product Parameters	Surface color	Packaging data
	Smart deadbolt lock	8705	Password + fingerprint + card swipe + Tuya Bluetooth	Factory article number: 8705 Product name: American standard deadbolt lock Product color: Spray painted sub-black/pearl nickel Product material: Front panel aluminum alloy, rear panel ABS plastic Product size: Front panel 1486428.5mm, rear panel 15871.547.5mm Fingerprint capacity: 100 pieces Password storage capacity: 20 groups Password length: 6 digits Opening method: touch password/fingerprint/mechanical key Power supply type: 4 No. 5 batteries Emergency power supply: USB charging Standby time: 1 year Number of unlocking times with full power: >3000 times Service life: 100,000 times Working temperature: Front panel -20-66 (℃)/rear panel 0-49 (℃) Working humidity: 0-90 (%) Suitable door type: wooden door Suitable door thickness: 35-50mm	Password + fingerprint + card swipe + Tuya Bluetooth	Packing method: neutral white box Packing size: 17.512.48.4cm Product weight (including packaging): 830g Outer box size: 36.526.536.5cm Quantity per box: 16PCS/box Net gross weight: 14kgs
