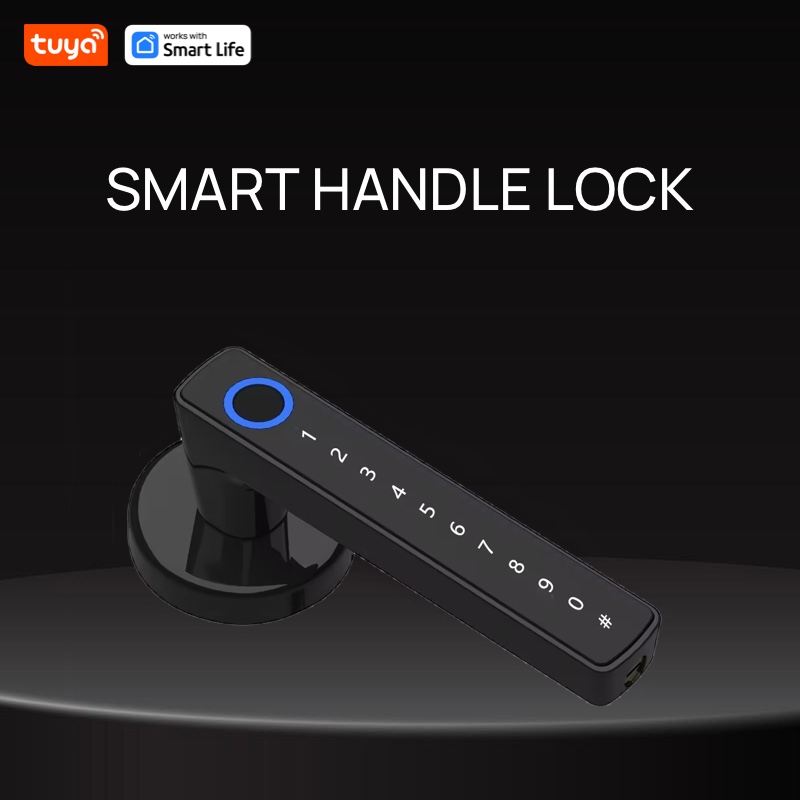

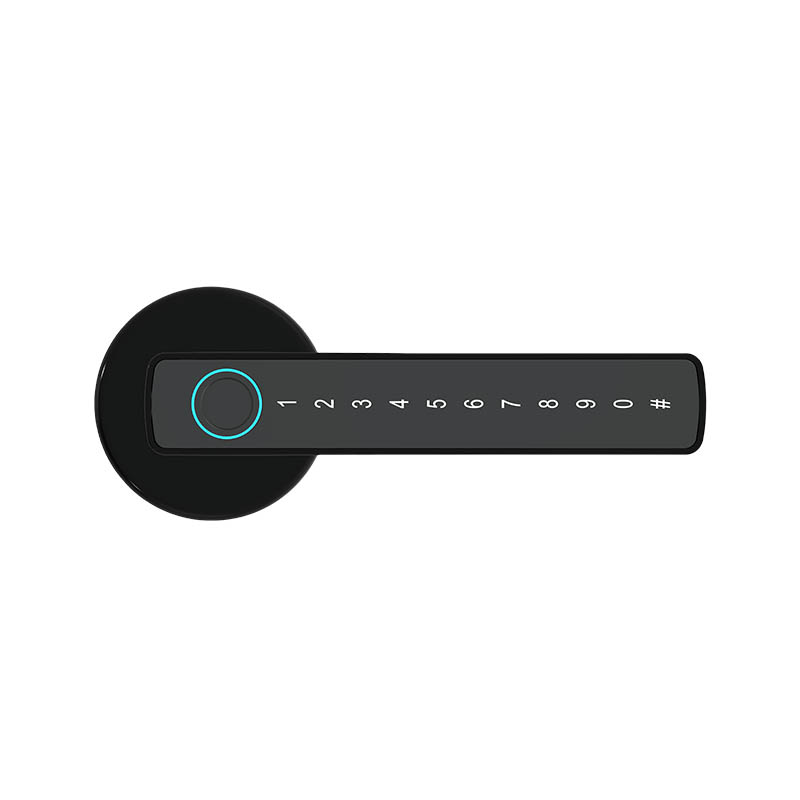

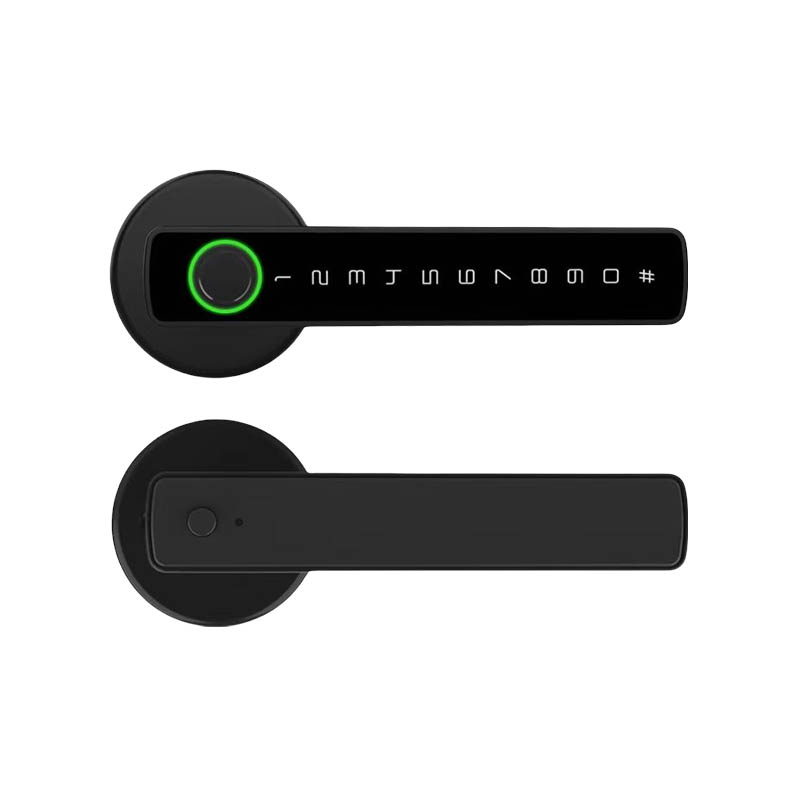

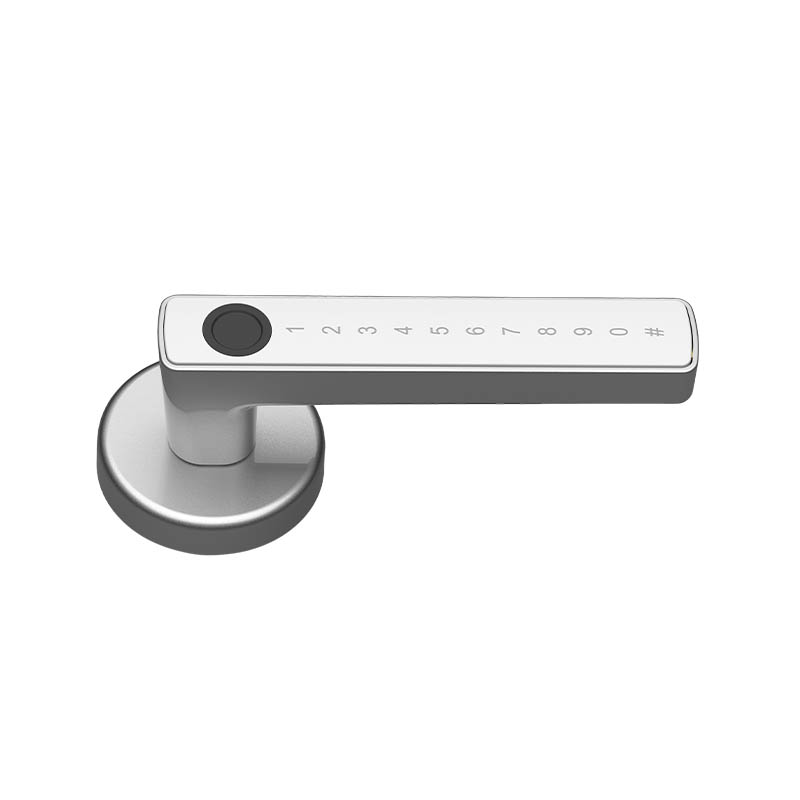

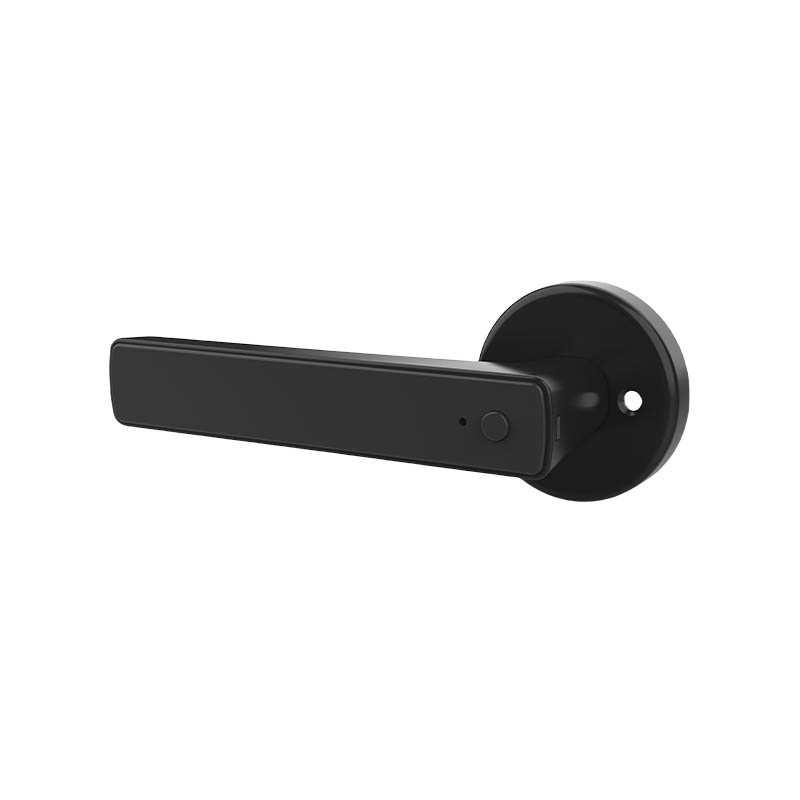

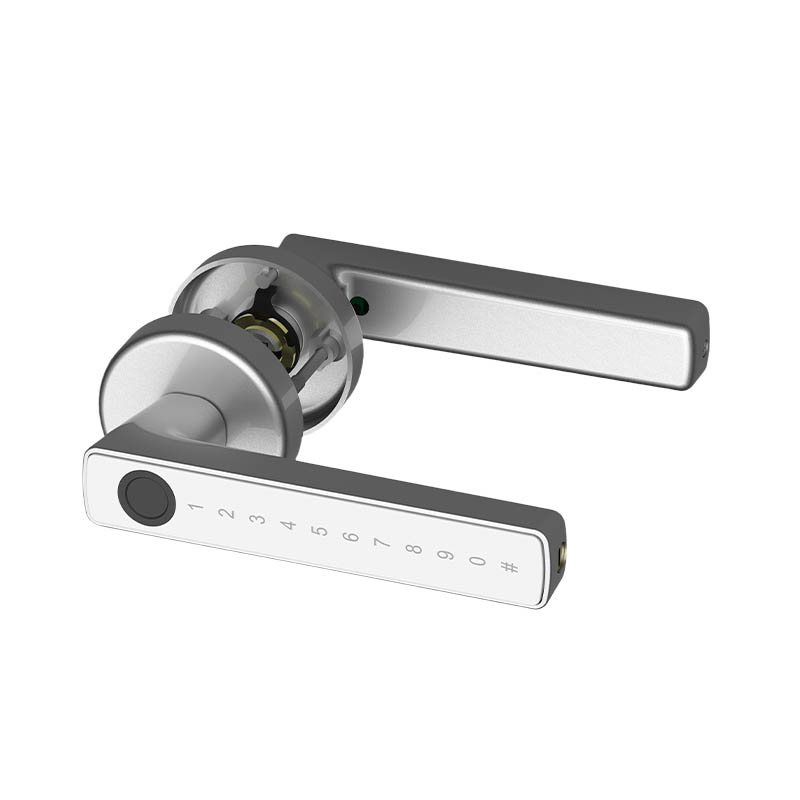

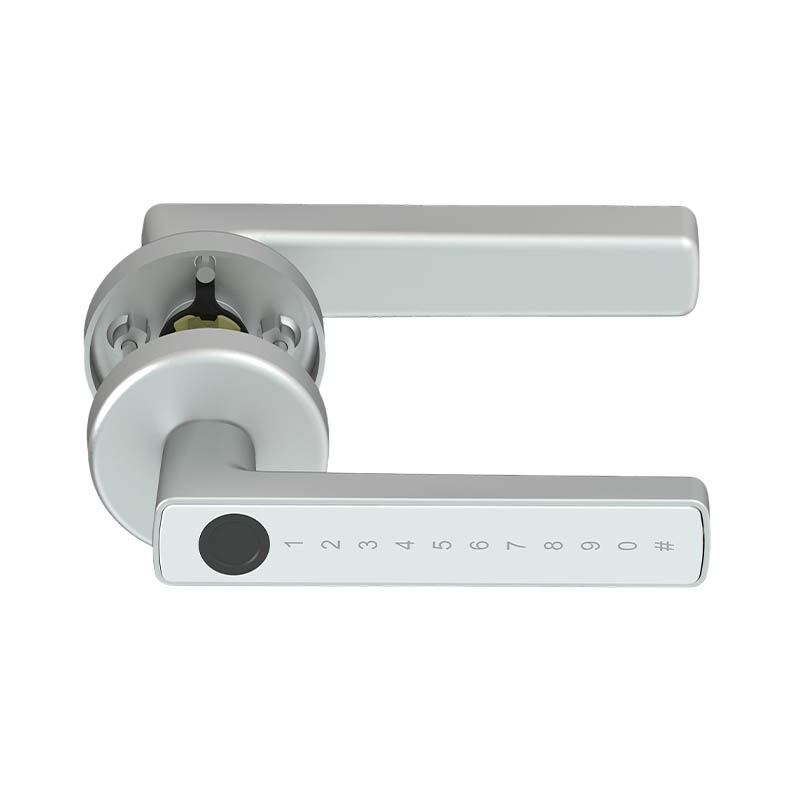

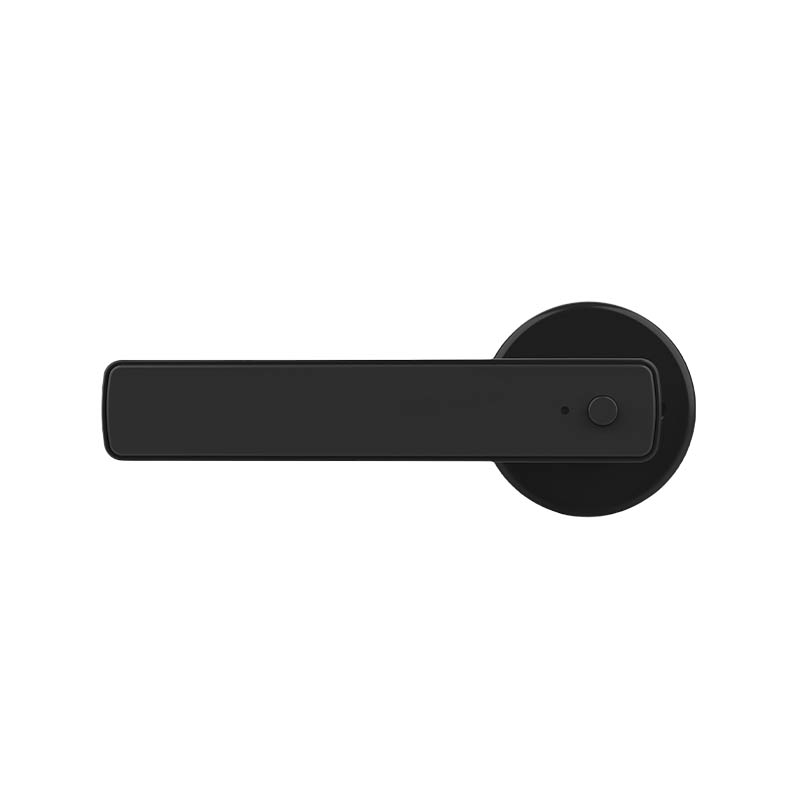

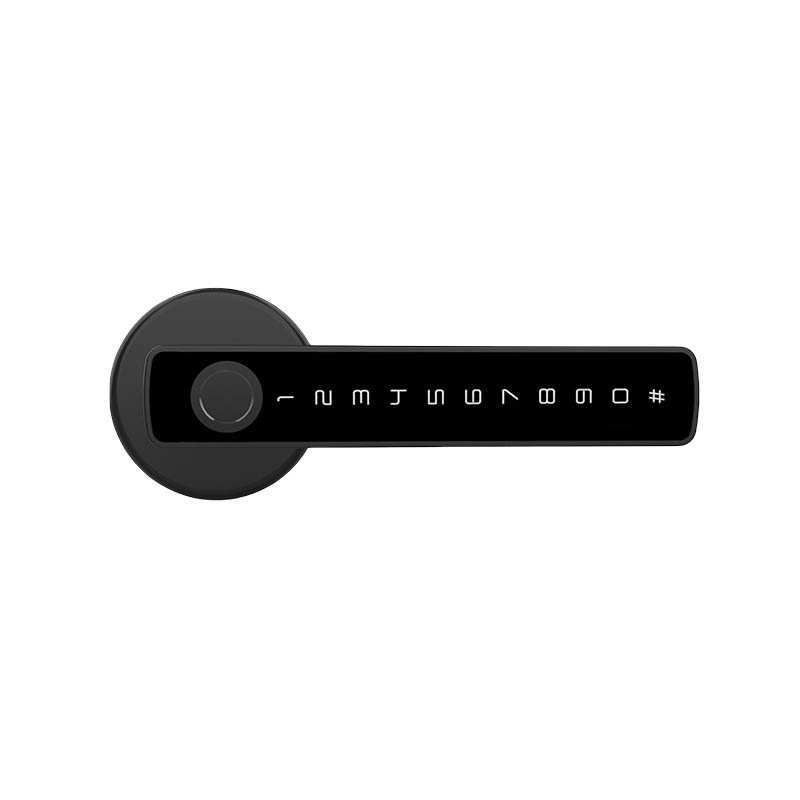

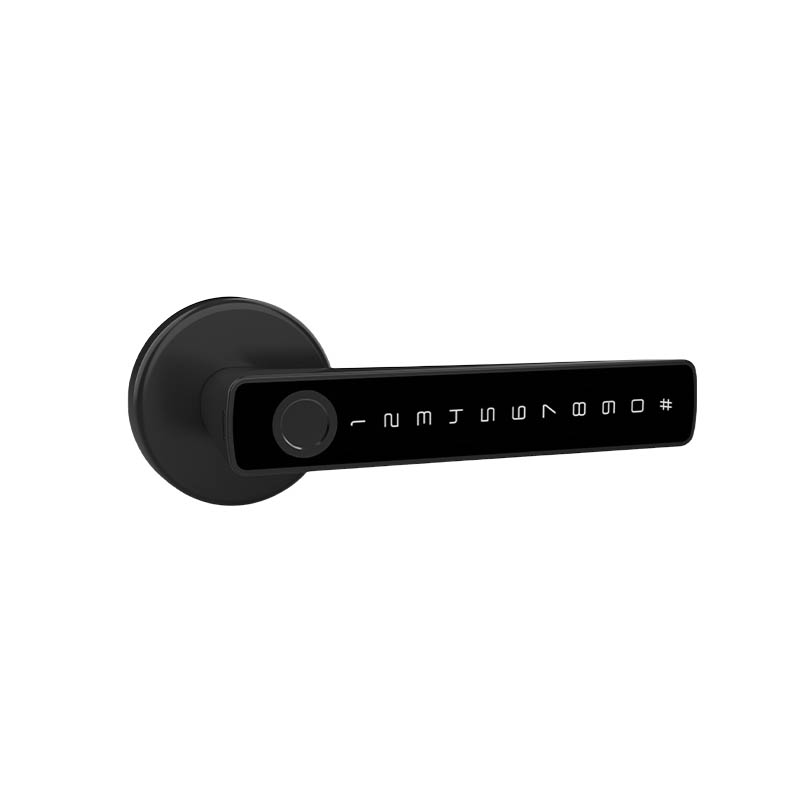

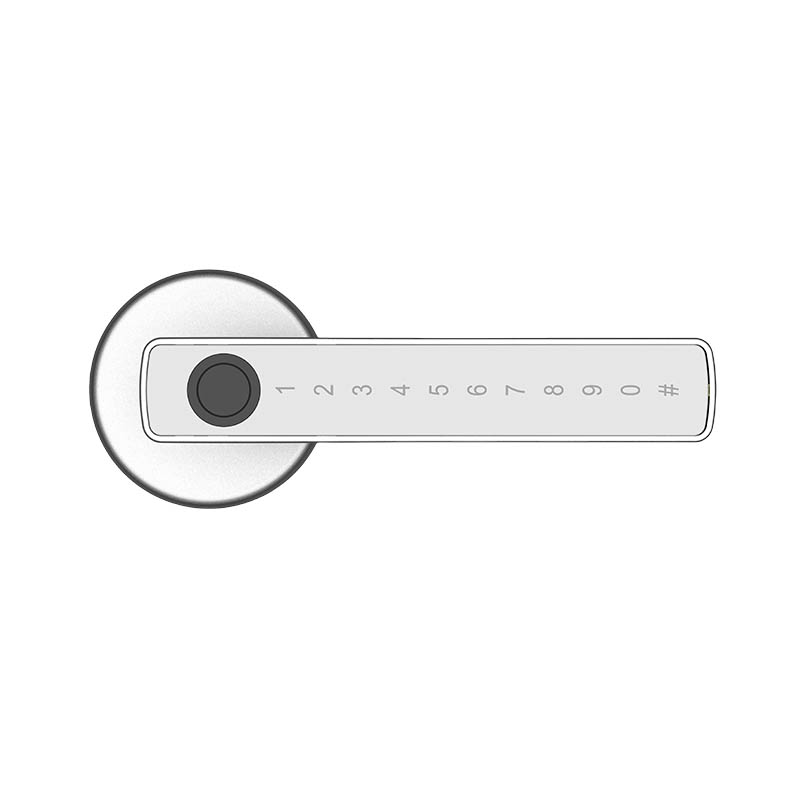

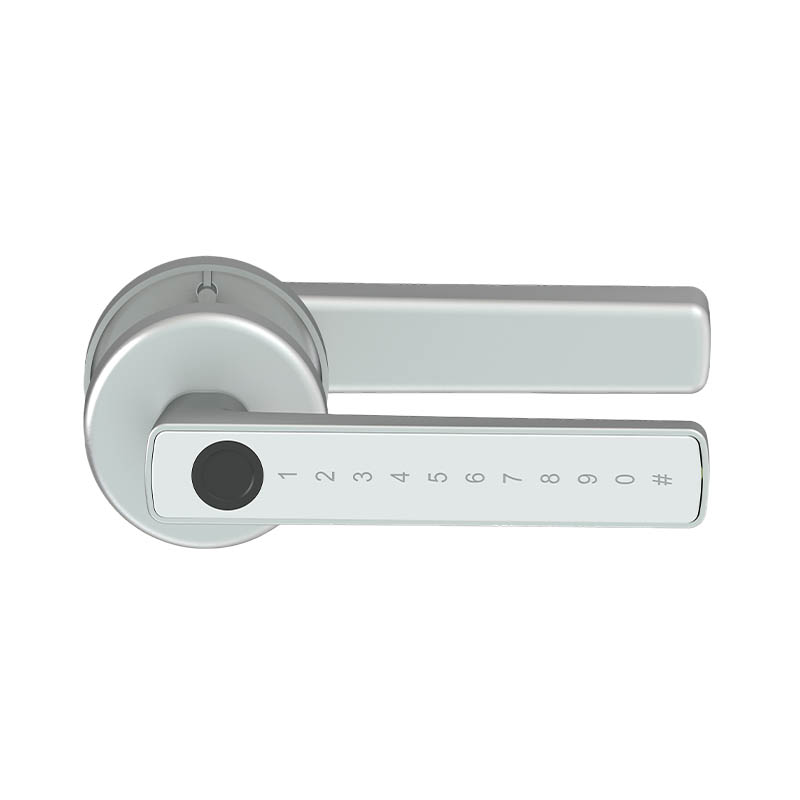

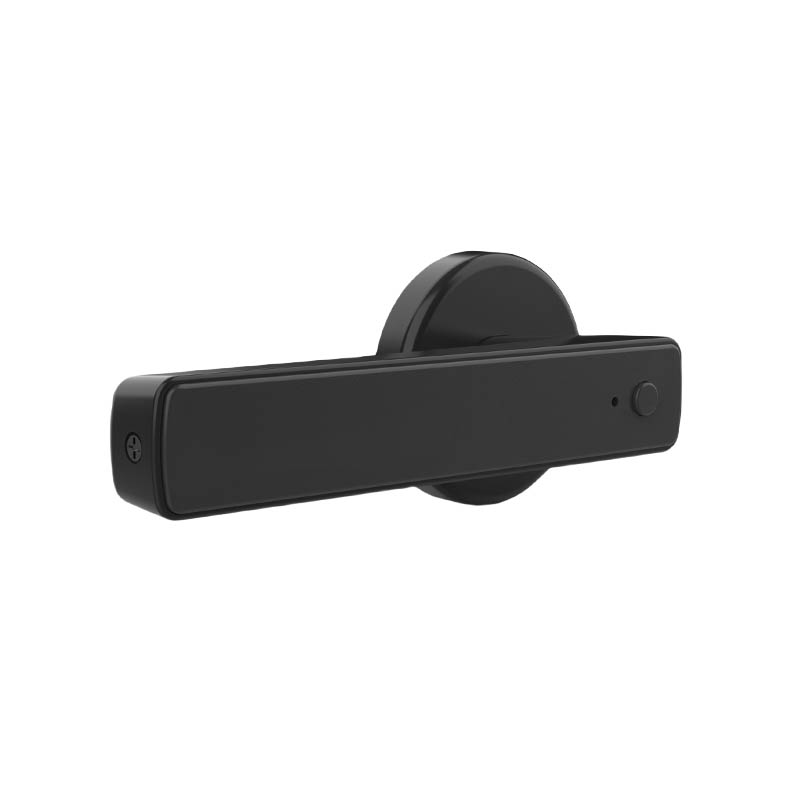

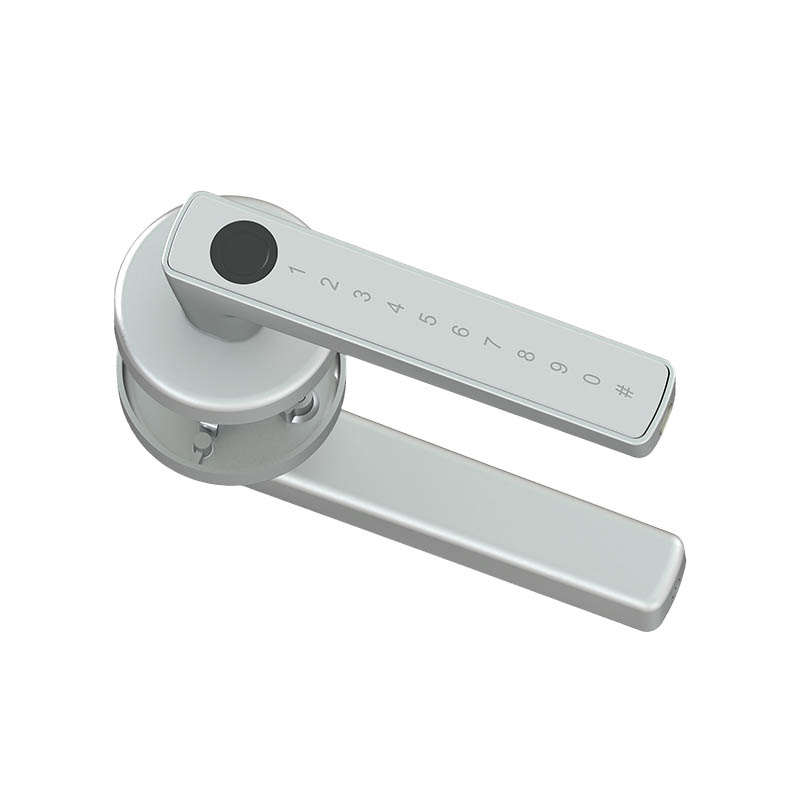

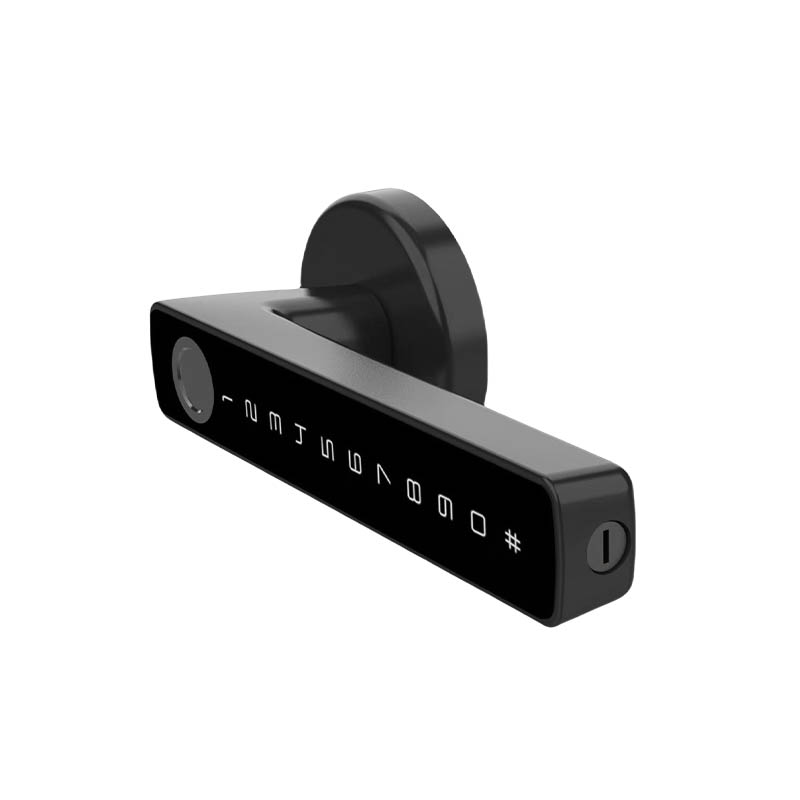

Indoor Door Locks, Room Door Locks B01

B01
User Manual
Power supply 3.6V~6V, mechanical key, mobile phone APP (Tuya Bluetooth), password, card, fingerprint

Consult

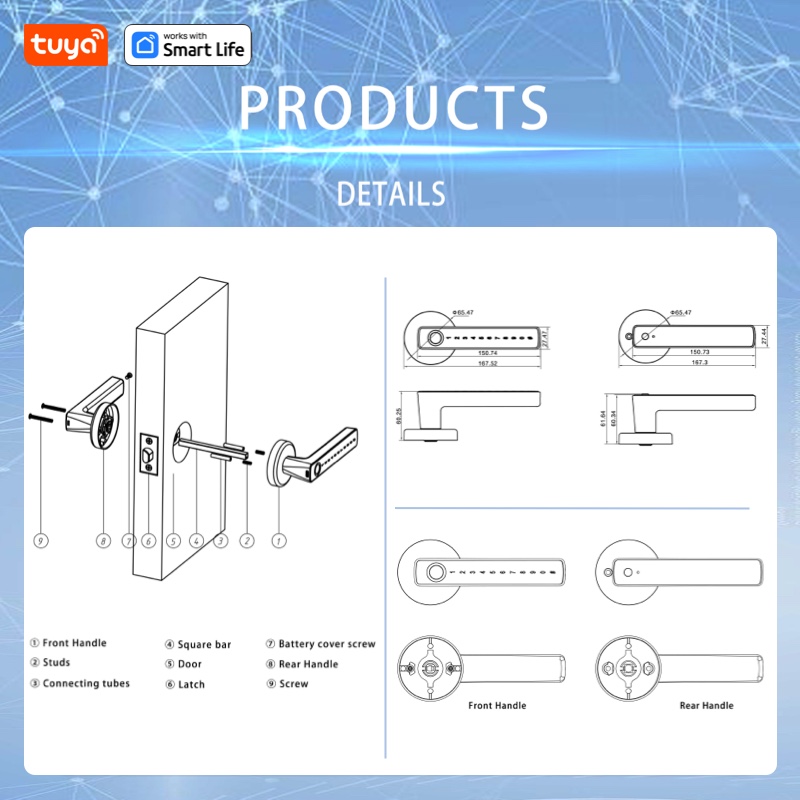

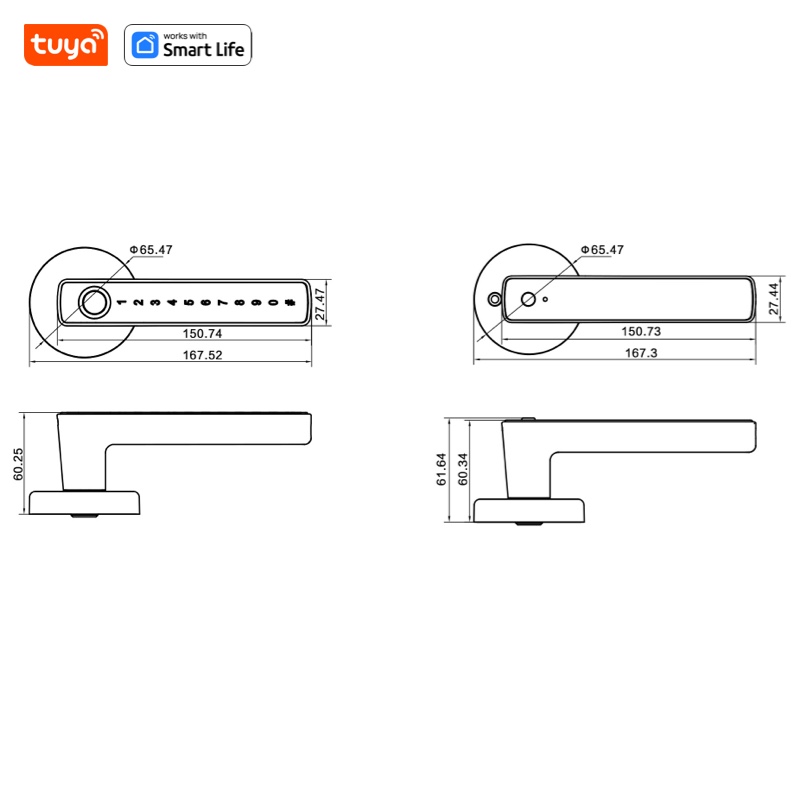

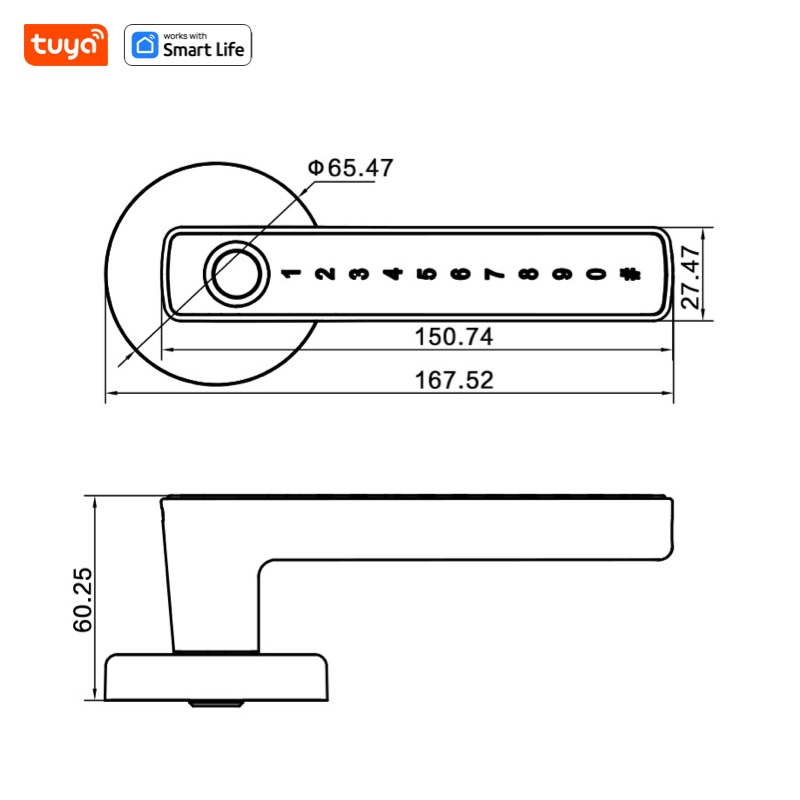

Features Technical Indicators Overall Dimension

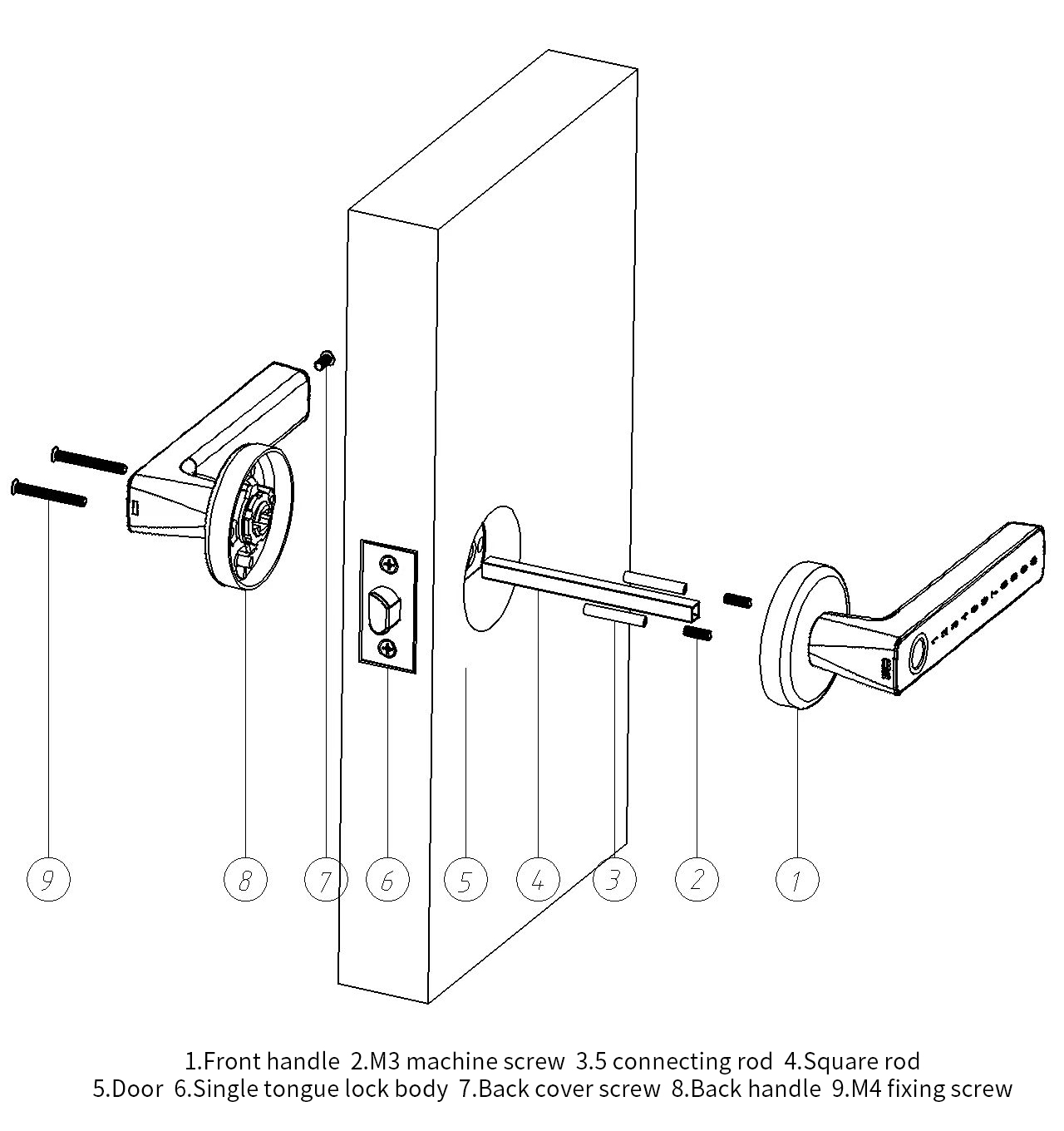

B01 Handle Accessories Details
Diagram	name	Specification	color	quantity
	LOCKB01 indoor door lock	16865.560.5mm	black	1
	Universal lock cylinder door lock Tongue	Total length 85mm front width 58mm Height 25mm front section screw distance 41mm Length from front section to square bar hole 60mm (square hole can be adjusted backward 10mm) Rear end width 23mm	silver	1
	Hollow Square Rod	8X8mm hollow square rod length 105mm	silver	1
	Tension screw	External thread M4 Internal thread M4 Length 35mm	Brass	2
	Cross countersunk screw	M4 cross countersunk screw Length 35mm	black	2
	Cross countersunk screw	M4 cross countersunk screw Length 45mm	black	2
	Cross countersunk flat tail self-tapping screw	M3 cross countersunk flat tail self-tapping screws Length 10mm	black	1
	Phillips screw	Self-tapping screws Length 18.70mm	silver	4
	Lock box	Length 69mm, widest 37mm, narrowest Inner diameter 26mm, width 18, inner diameter Length 28mm, screw hole spacing 55mm	White	1
	Cleats	Length 61.5mm Width 23mm Height 12mm Inner diameter width 18.5mm Inner diameter length 27.8mm	silver	1
	spring	/	silver	1
	screwdriver	/	/	1
	key	/	silver	2
	Paper product instructions	/	/	1

Related parameters
Parameter performance
Maximum number of fingerprints	100
Maximum number of passwords	250
Maximum number of cards	250
Sleep current(uA)	Bluetooth is not turned on	Bluetooth on
	<40	Average 70
Battery life (times)	>3000
Note: The maximum number of registered users is 300.

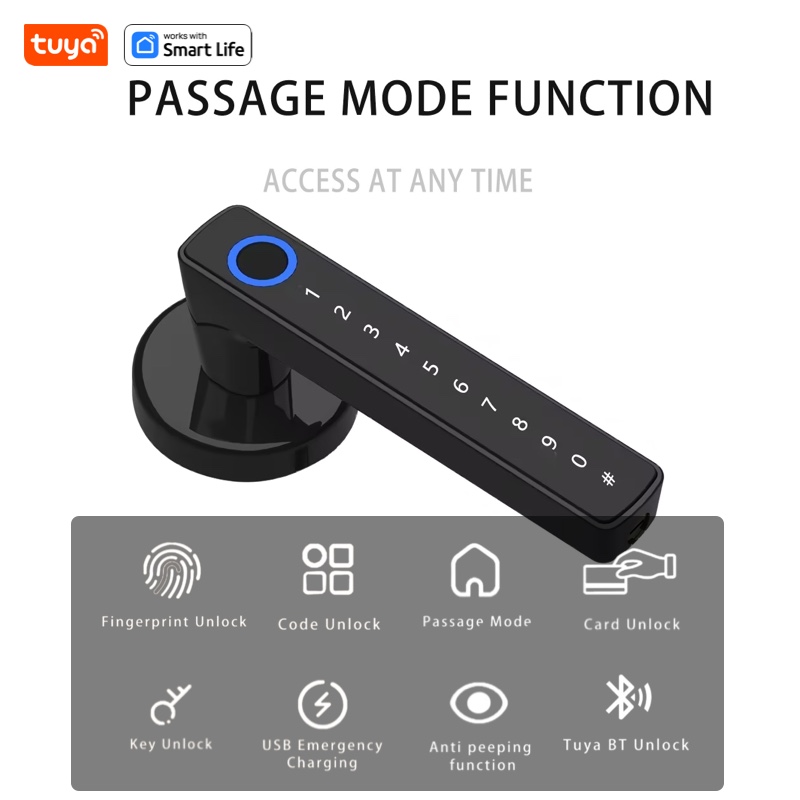

Support unlocking methods	Fingerprint/password/swipe card/Bluetooth/temporary password
Fingerprint capacity	50 pieces
Password capacity	250 Group
Card swiping capacity	250 Group

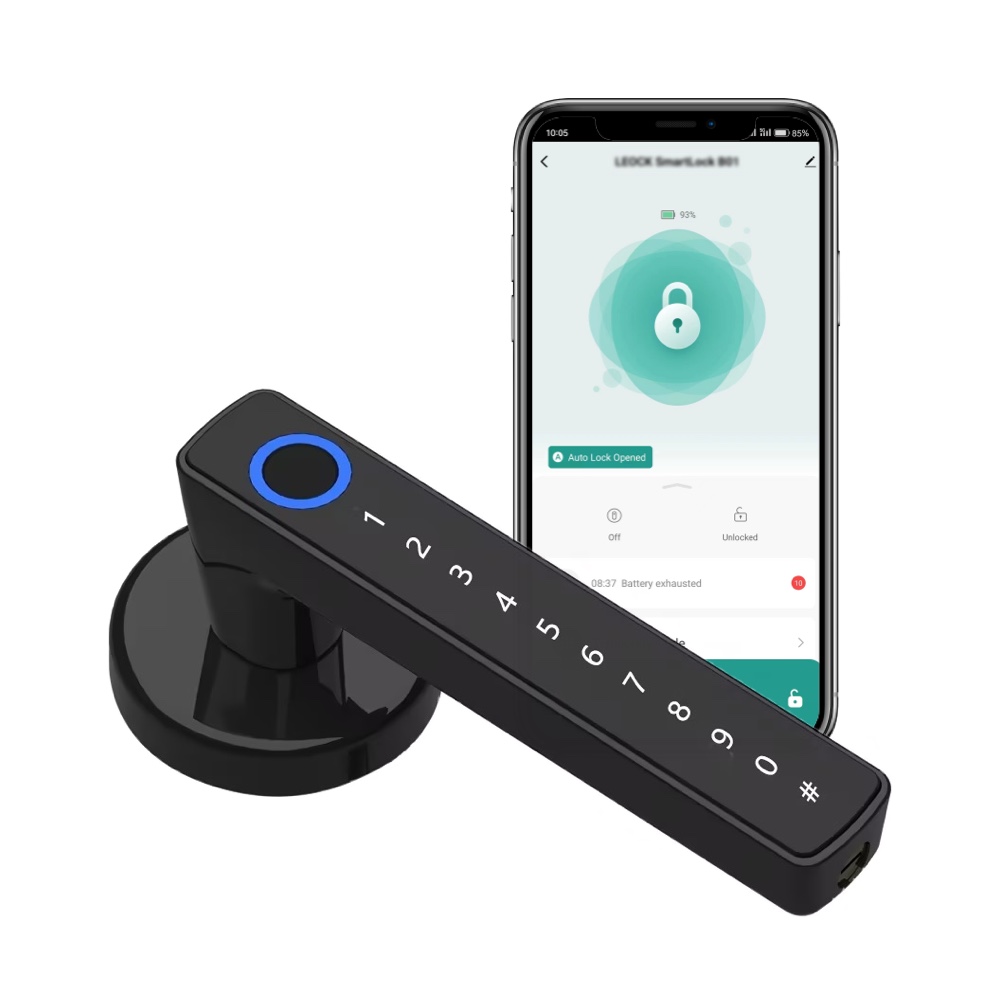

Supporting APP	Tuya Smart (Bluetooth)
Remote Control	Support Tuya Bluetooth Gateway
Operating voltage	Minimum 4.2V input, 4 dry batteries
Battery life	>3000 unlocks
Maximum current	<100(mA)/VDD
Standby current	Bluetooth on <90(uA)/Bluetooth off <40(uA)
Operating temperature	-20°C to 60°C
Storage temperature	-40°C to 85°C
Relative humidity	20% to 85% (non-condensing)
Anti-static ability (ESD)	Contact discharge ±8KV, non-contact discharge ±15KV
